Cattle Working Systems Designs & Sample Layouts

ProWay products are proudly designed and manufactured in
the USA and Australia, and installed all over the world.

Cattle Corral Ideas Tailored to Your Operation

All livestock enterprises are different. That’s why the best cattle corral ideas are the ones designed specifically for your operation.

With over 20 years of experience in livestock facility design and manufacturing, ProWay creates cattle working systems designs that prioritize safety, efficiency, and animal flow. We don’t sell corrals straight out of a catalog. Instead, we use our collection of standard layouts as a starting point to assess working capacity. From there, we customize the design to suit your unique needs and goals.

In most cases, our experienced corral design team builds entirely tailored solutions. We draw from an extensive internal design library and apply hands-on experience to develop layouts that are practical and purpose-built for your facility.

No two ProWay yards are the same, because your cattle corral ideas should be as unique as your operation.

Each cattle working system design is drawn using CAD software to ensure precise measurements and a seamless fit during construction

Custom Cattle Corrals Designed to Last Generations

ProWay’s custom cattle corrals are built to withstand the test of time. Every detail matters—operator and vehicle access, gate placement and swing direction, alley width, pen sizes, and even corral orientation all influence how your cattle move through the system.

Each facility is drawn using CAD software to ensure precise measurements and a seamless fit during construction.

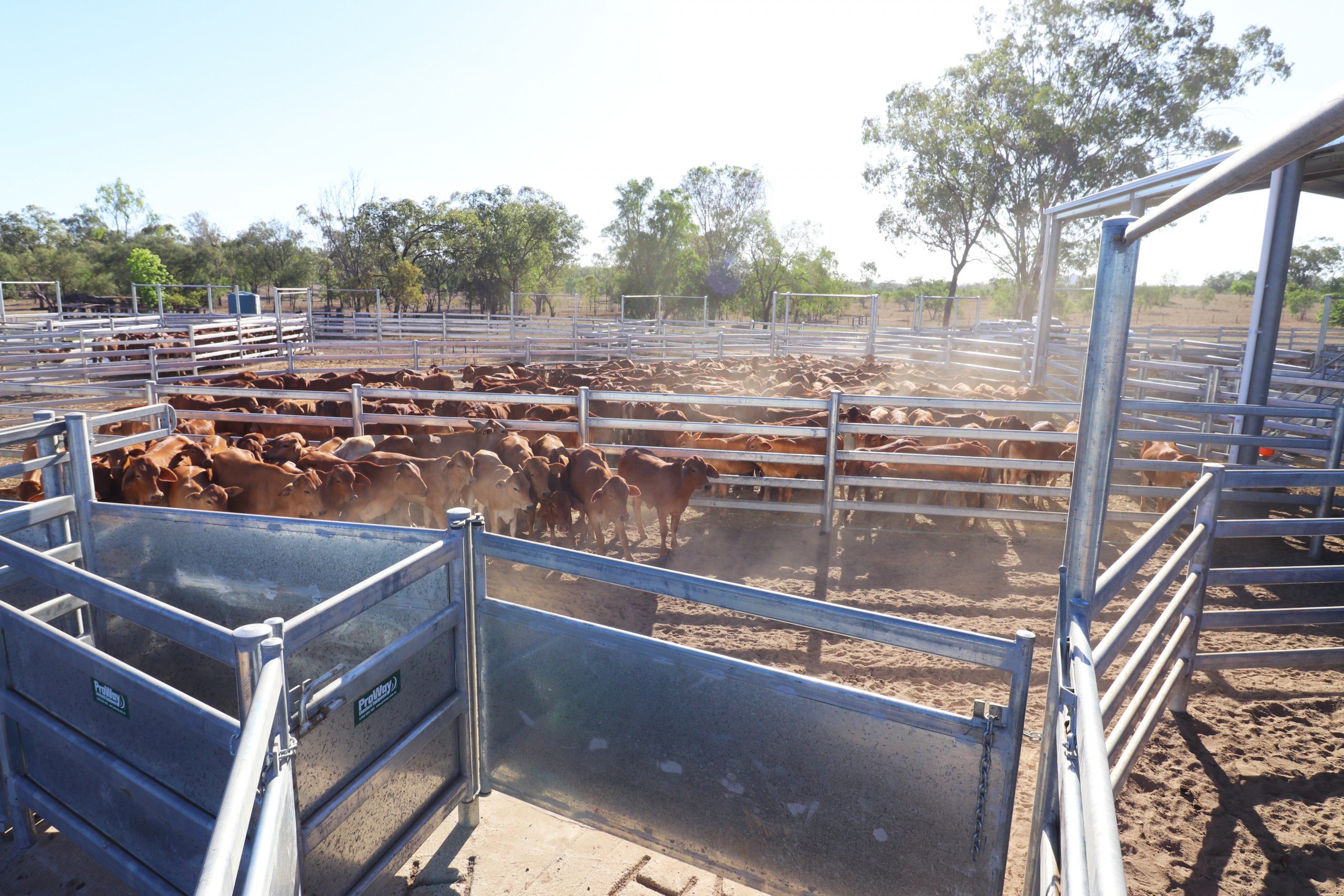

Durable ProWay cattle working system designed to suit individual operational requirements

THE PROWAY DESIGN ADVANTAGE

We take a detailed approach to planning. Using satellite and survey imagery, we account for existing fence lines, infrastructure, trees, and elevation changes. When possible, we design systems that integrate existing structures to reduce costs and maximize efficiency.

On greenfield sites, we help select the best location for optimal access, vehicle flow, and cattle handling. We also provide site preparation guides, including earthworks, new laneway layouts, and turning circles for semi and b-double trailers—so you can be confident everything fits exactly as planned.

Custom cattle corral with curved alleys designed for efficient cattle flow and operator safety

On top of your cattle working system design, we provide site preparation guides which can include recommended new fence lines, laneways and earthworks, as well as turning circles for semi and b-double trailers so you can be sure everything fits.

Explore Cattle Working Systems Designs for Every Operation

Below is a selection of standard layouts for varied working capacities. Each one can be tailored to fit your unique needs. With ProWay’s experience and thoughtful planning, your custom cattle corrals become high-performing, long-lasting cattle working systems.

PCY 260

ENTIRE CORRAL SIZE: 570 SQM

FILLED COMPLEX HOLDS: 260 head

PRE-SORTING HOLDING: 135 head

POST-SORTING HOLDING: 100 head

(based on 2 SQM per animal)

WORKING ALLEY LENGTH: 8.4m

Key Features Include:

  • Working Alley:
    • ¾ Sheeted on inside
    • Fully sheeted outside
  • Tub force with ratchet brake
  • Sliding gates
  • 3-Way sorting gates
  • Manways at key access points
  • Optional loading chute
  • Customized to suit your operation
PCY 360

ENTIRE CORRAL SIZE: 845 SQM

FILLED COMPLEX HOLDS: 360 head

PRE-SORTING HOLDING: 225 head

POST-SORTING HOLDING: 135 head

(based on 2 SQM per animal)

WORKING ALLEY LENGTH: 14.7m

Key Features Include:

  • Working Alley:
    • ¾ sheeted on inside
    • Fully sheeted outside
  • Tub force with ratchet brake
  • Sliding gates
  • Sorting Pound braced overhead
  • 3-Way Sorting Alley
  • Manways at key access points
  • Sheeted calf alley
  • Optional loading chute
  • Customized to suit your operation
PCY 390

ENTIRE CORRAL SIZE: 933 SQM

FILLED COMPLEX HOLDS: 390 head

PRE-SORTING HOLDING: 250 head

POST-SORTING HOLDING: 140 head

(based on 2 SQM per animal)

WORKING ALLEY LENGTH: 13.0m

Key Features Include:

  • Working Alley:
    • ¾ sheeted on inside
    • Fully sheeted outside
  • Tub force with ratchet brake
  • Pound braced overhead
  • 3-Way sorting module
  • Manways at key access points
  • Sheeted calf alley
  • Optional loading chute
  • Customized to suit your operation
PCY 500

ENTIRE CORRAL SIZE: 1,200 SQM

FILLED COMPLEX HOLDS: 500 head

PRE-SORTING HOLDING: 260 head

POST-SORTING HOLDING: 240 head

(based on 2 SQM per animal)

WORKING ALLEY LENGTH: 13.4m

Key Features Include:

  • Working Alley:
    • ¾ sheeted on inside
    • Fully sheeted outside
  • Tub force with ratchet brake
  • Pound braced overhead
  • 3-Way Sorting Alley
  • Manways at key access points
  • Sheeted calf alley
  • Optional loading chute
  • Customized to suit your operation
PCY 660

ENTIRE CORRAL SIZE: 1,540 SQM

FILLED COMPLEX HOLDS: 660 head

PRE-SORTING HOLDING: 325 head

POST-SORTING HOLDING: 335 head

(based on 2 SQM per animal)

WORKING ALLEY LENGTH: 17.1m

Key Features Include:

  • Working Alley:
    • ¾ sheeted on inside
    • Fully sheeted outside
  • Tub force with ratchet brake
  • Pound braced overhead
  • 5-Way Sorting Alley
  • 3 x diamond yards for flexibility
  • Manways at key access points
  • Optional loading chute
  • Customized to suit your operation
PCY 1175

ENTIRE CORRAL SIZE: 2,600 SQM

FILLED COMPLEX HOLDS: 1,175 head

PRE-SORTING HOLDING: 670 head

POST-SORTING HOLDING: 505 head

(based on 2 SQM per animal)

WORKING ALLEY LENGTH: 19.3m

Key Features Include:

  • Working Alley:
    • ¾ sheeted on inside
    • Fully sheeted outside
  • Tub force with ratchet brake
  • 3-Way sorting alley
  • Pound yard braced overhead
  • 4 x diamond yards for flexibility
  • Manways at key access points
  • Optional loading chute
  • Customized to suit your operation
