CATTLE LOADING CHUTES

ProWay products are proudly designed and manufactured in
Australia and the USA, and installed all over the world.

ProWay Under and Over Cattle Loading Chute Ramp

IMPROVE LOADING EFFICIENCY

ProWay has designed a range of cattle loading chutes that are regarded by livestock carriers as the best available for safety and stock flow.

We have been engaged by numerous private and public organisations to design, manufacture and install Loading and Unloading Chutes on farms, feedlots all the way through to large scale slaughterhouses and sale barns.

Our Cattle Corral Loading Chute range is second to none and has been refined over many years through research, development and direct industry feedback.

Our product and customization capabilities ensure we have a vast range of Loading Chutes that can be tailored to your operation.



ALTRA RAMP GUIDE

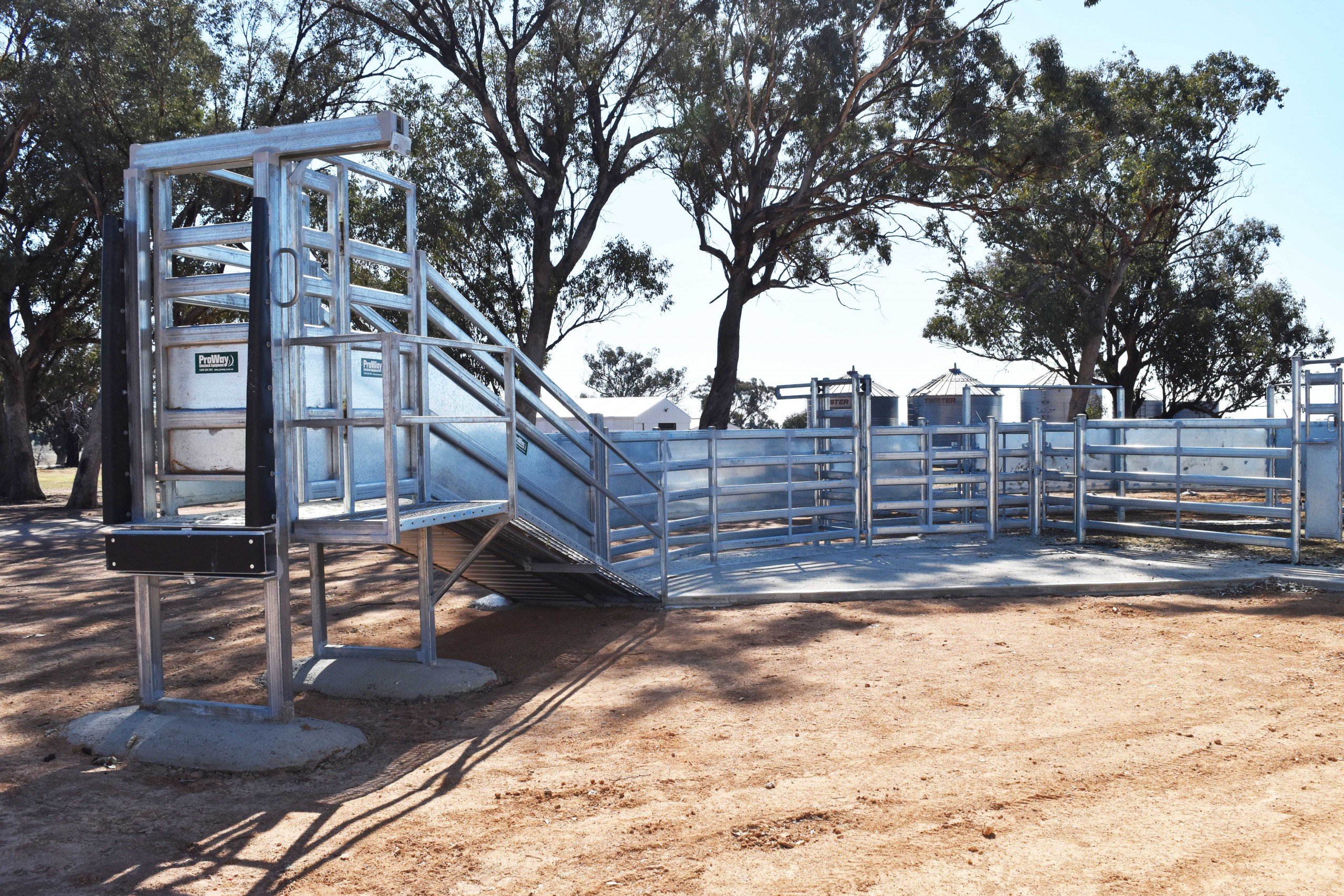

PROWAY BUILDS OVER 200 UNIQUE LOADING CHUTES A YEAR

Below you’ll find a selection of our most popular cattle chutes which have a number of options to suit your specific requirements.

Depending on your requirements we tailor a solution that best suits you. These factors include: livestock breed and species, access walkways, deck heights, retaining walls, existing infrastructure, electric or manual winches throughput and access for operators/livestock carriers.

ProWay’s Loading Chute range is the result of years of research, product development and industry feedback.

Mobile Cattle Loading Chutes

Permanent Cattle Loading Chutes

Commercial Cattle Loading Chutes

MOBILE CATTLE LOADING CHUTES

PERMANENT CATTLE LOADING CHUTES

COMMERCIAL AND LARGE SCALE CATTLE LOADING RAMPS

LOOKING FOR MORE INFORMATION?

Talk to us and discover why ProWay Livestock Equipment is the choice of livestock professionals

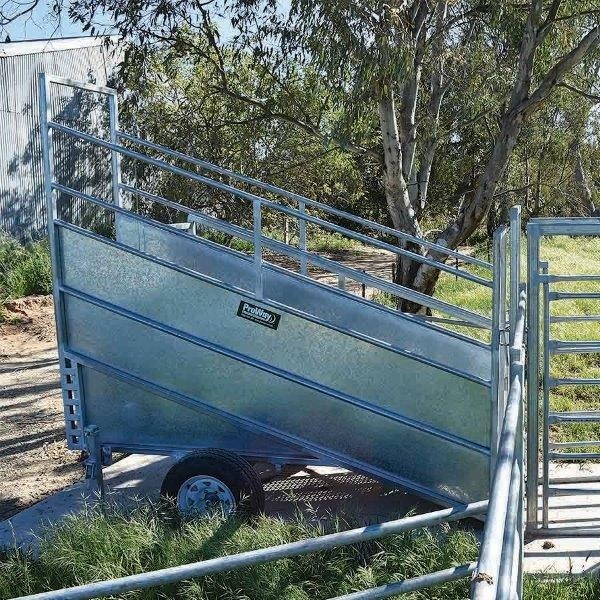

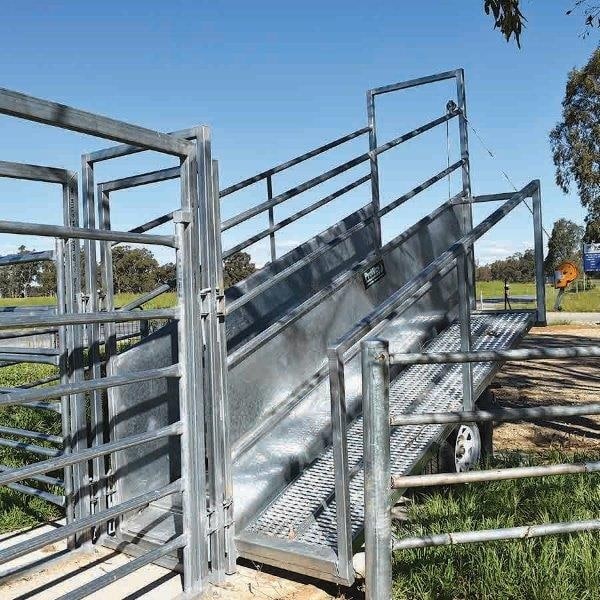

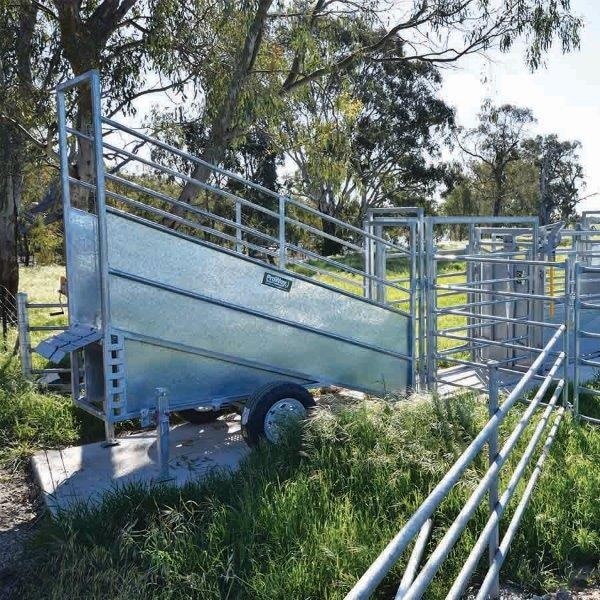

ECO MOBILE CHUTE

  • The Eco Mobile Cattle Chute is an adjustable trailer to truck ramp and an effective solution for loading between trailers, pickups and the first deck of stock crates
  • Sheeted to a height of 1m, the galvanized construction prevents legs from getting through the ramp for cattle loading safety
  • Features wheels, leaf  suspension and a convenient swing aside pull
  • The Ramp can be towed between multiple corrals or properties or included on Relocatable Corral designs

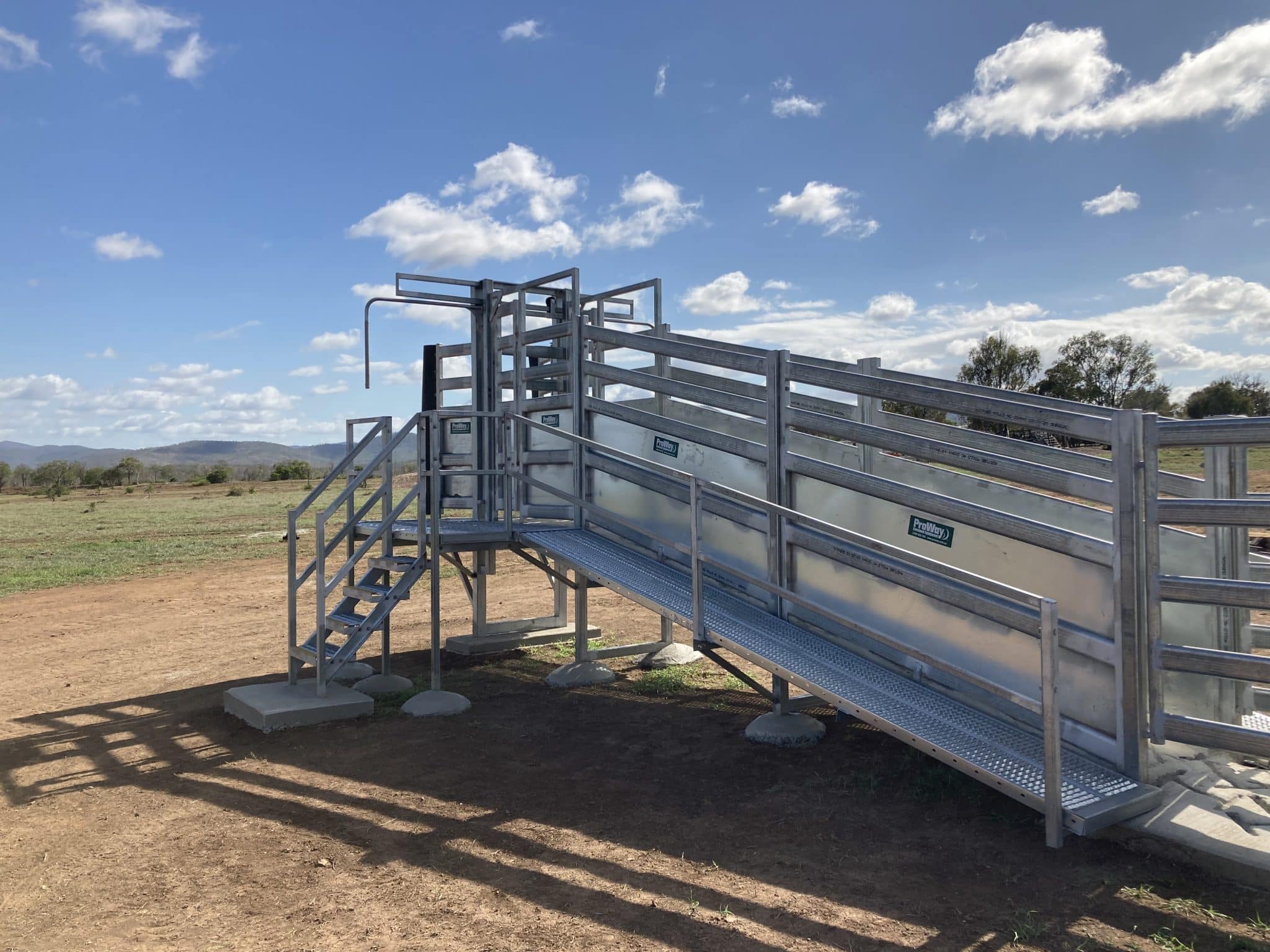

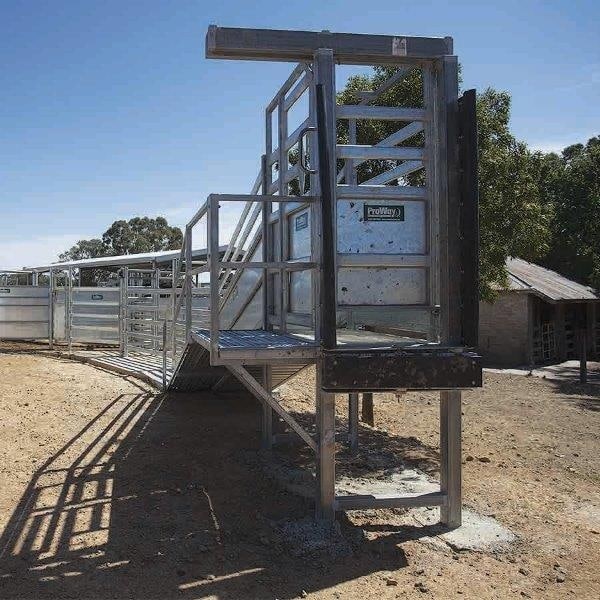

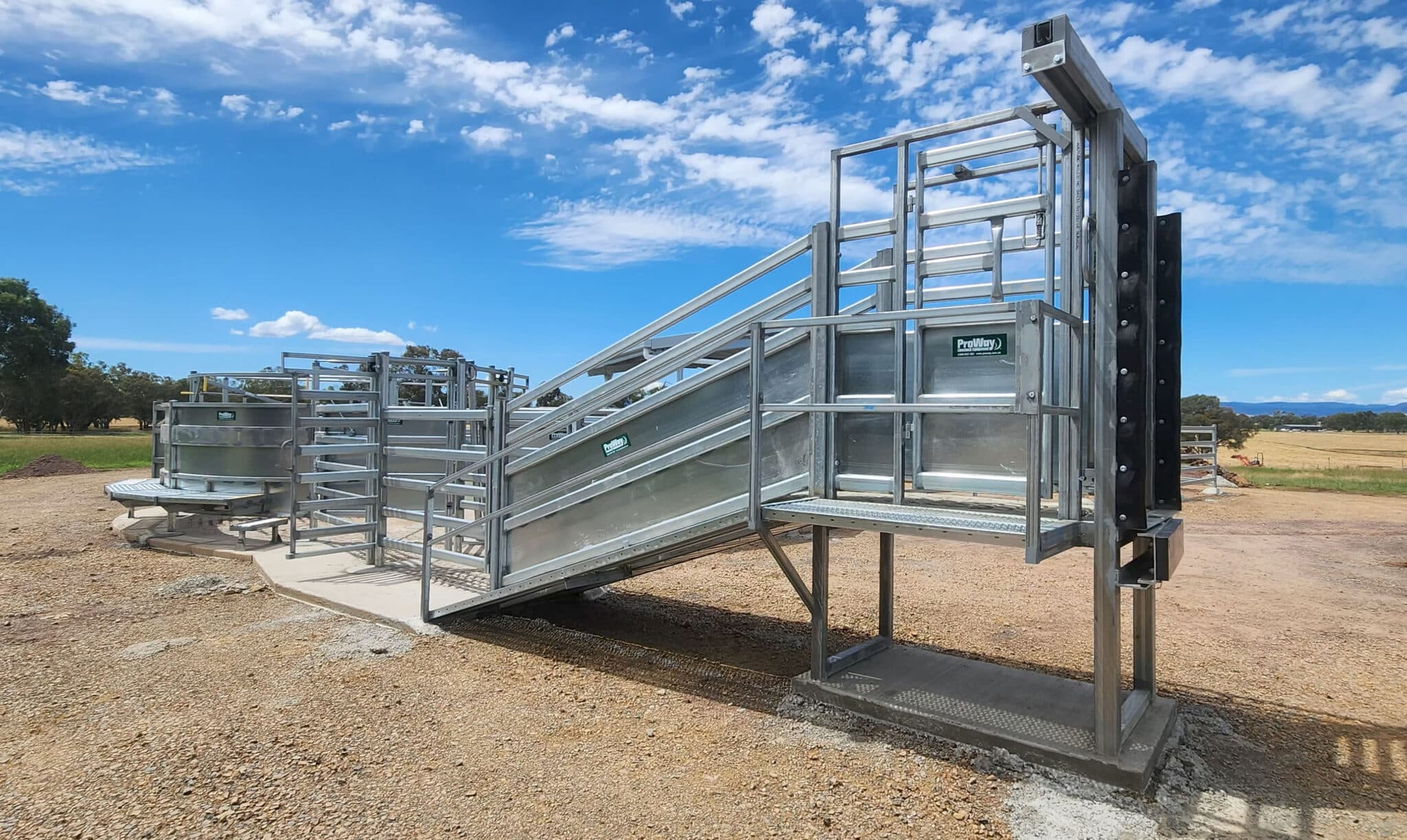

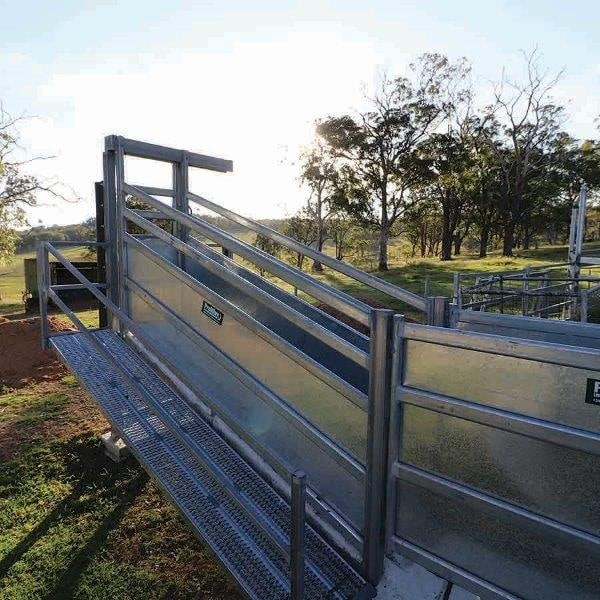

19 DEGREE LOADING CHUTE

  • Rises over 3.3m (optional 1.6m level extension)
  • Sheeted Cattle Rail sides are included for stock safety as well as a walkway and handrails for operator safety
  • A truck driver access door and sliding gate at the truck end allows for the flow of cattle to be stopped when required with a swivel buffer board, eliminating the long gap between ramp and truck
  • Designed for a stepped concrete floor to be poured on site

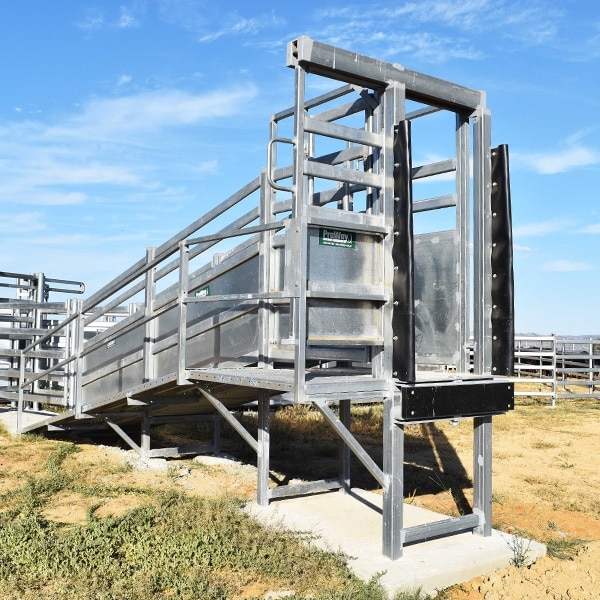

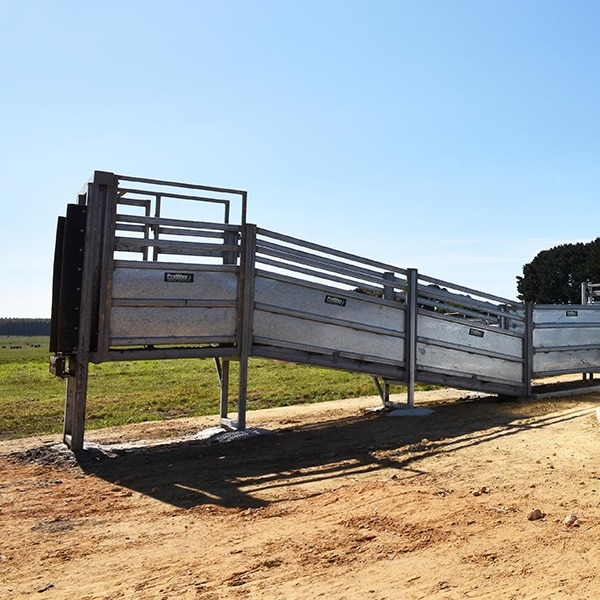

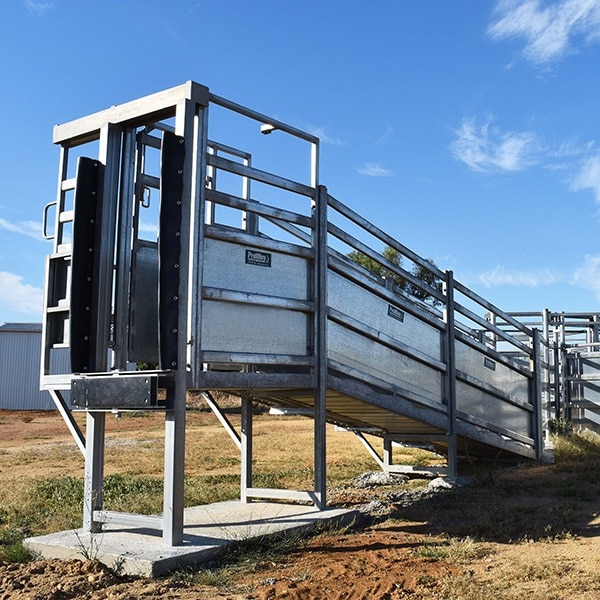

12.5 DEGREE REAR LOADING CHUTE (WITH LEVEL EXTENSION)

  • Rises over 5.0m (plus 1.6m level extension)
  • Galvanized construction with non-slip walkway and handrail for operator safety
  • Sheeted Cattle Rail sides are included for stock safety
  • Access door and sliding gate at truck end
  • Swivel buffer board eliminates gap between the chute and truck
  • Designed for a stepped concrete floor to be poured on site

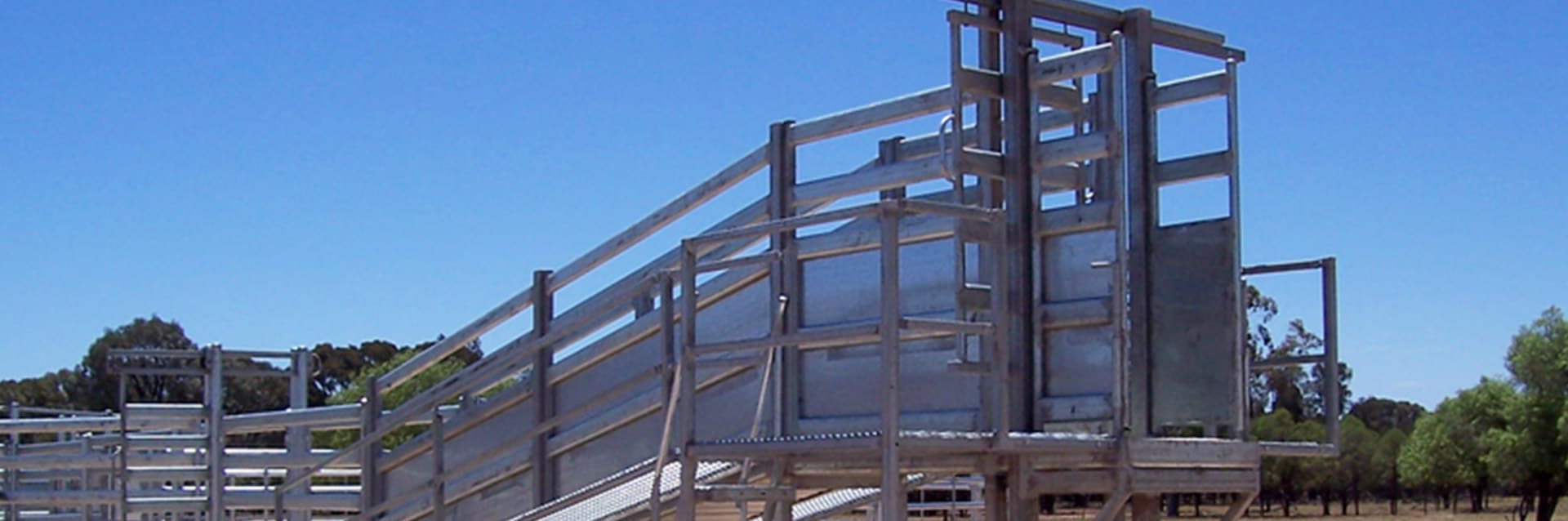

12.5 DEGREE SIDE LOADING CHUTE (WITH LEVEL EXTENSION)

  • Rises over 5.0m (plus 2.4m level extension).
  • Bat wing doors are designed to lock in place and allow side load stock crate doors to chain against them. They are adjustable in width to suit varied side load door openings
  • Galvanised construction with non-slip walkway and handrail on both sides for operator safety
  • Sheeted Cattle Rail sides are included for stock safety
  • Access door and sliding gate at truck end
  • Swivel buffer board eliminates gap between the chute and truck
  • Designed for a stepped concrete floor, to be poured on site

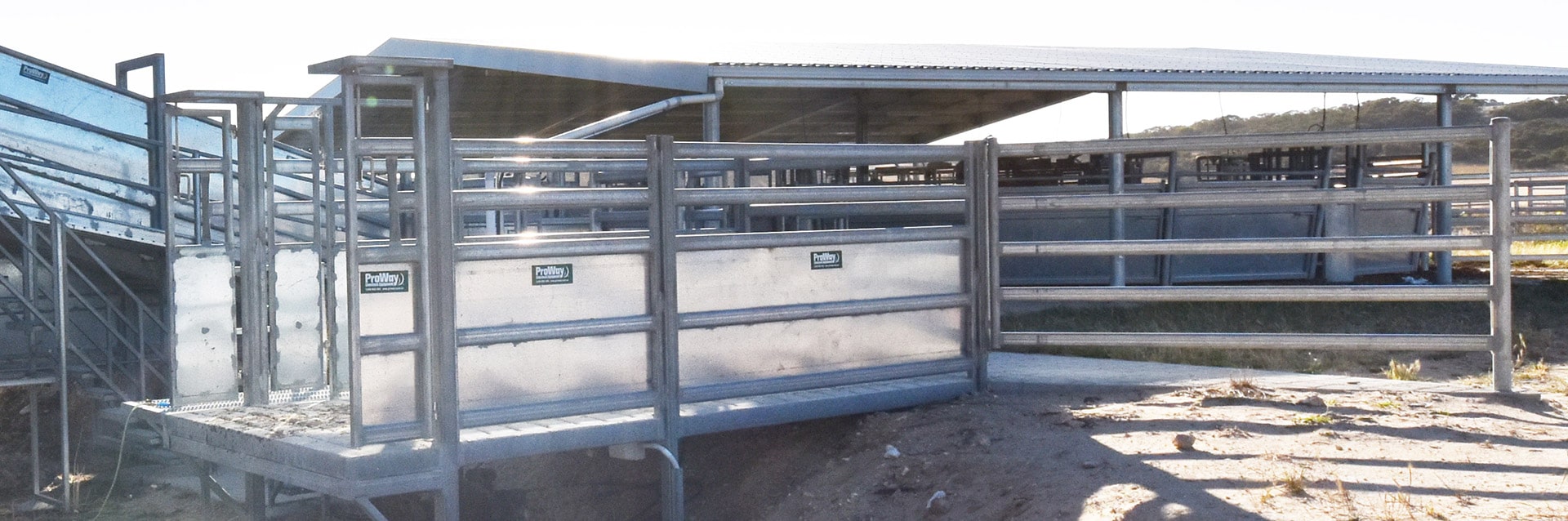

REAR UNLOADING DUMP

  • Can be built to suit a 1m retaining wall or rise from ground level
  • Ground level ramp rises over 5m (plus 2.4m level extension)
  • 1800mm wide dump for safe and efficient unloading of stock
  • Ideal for frequent turnover of cattle such as trade or feedlot operations
  • Stepped concrete floor that must be poured on site
  • Non-slip stairs and safety walkway to both decks

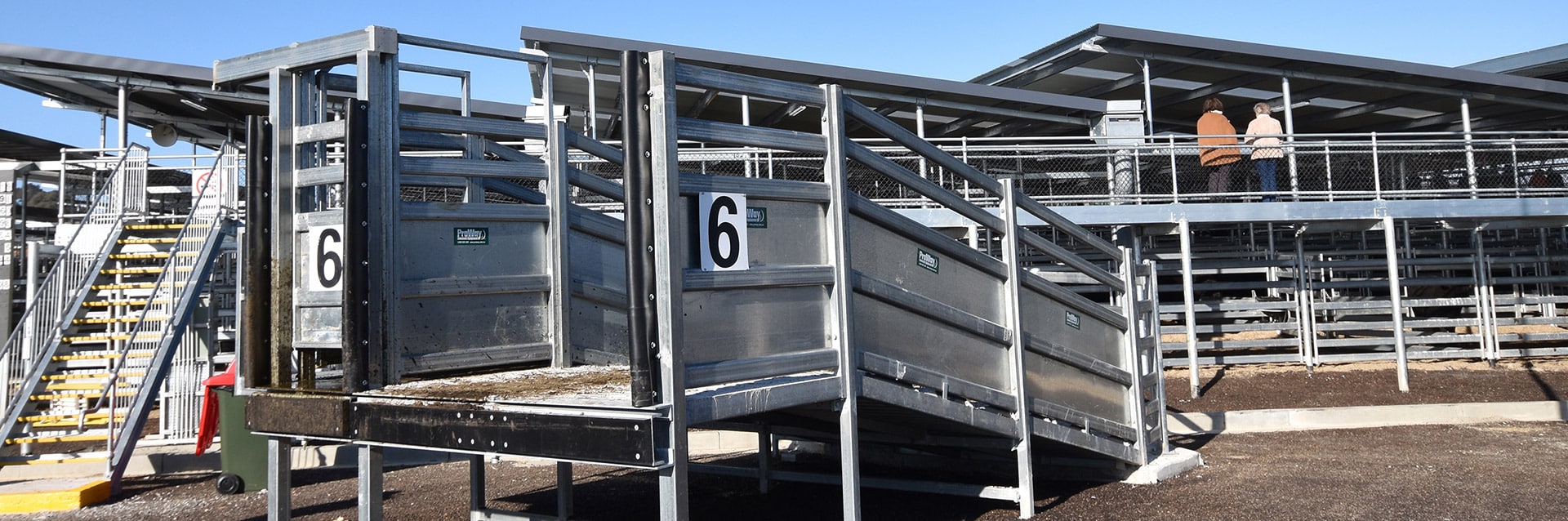

12.5 DEGREE COMBINED CHUTE AND DUMP

  • Designed as a single loading and unloading combination, ideal for high stock traffic
  • Includes 900mm wide ramps and 1800mmm wide unloading dump
  • Rises over 5.0m (plus 2.4m level extension)
  • Can be built as side or rear loading/unloading chute
  • Side loading unit includes bat wing doors which lock in place and allow side load stock crate doors to chain against them
  • Steps and walkway on driver’s side
  • Designed to have concrete floor and steps
  • Galvanized sheeted sides

3.3M TRAILER UNLOADING CHUTE

  • Commercial grade cattle loading/unloading chute designed for high throughput at selling barns and commercial facilities with heavy duty construction
  • Hand winch to raise and lower height, which adjusts from box trailers to the 1st deck of a truck
  • Walkway and handrail one side for safe operator access
  • Heavy Duty 150 PFC gantry with lock in safety bar
  • 1m sheeted ramp sides, 925mm width encourages stock flow
  • Drop over flap – eliminates gap between truck/trailer and chute
  • All galvanized construction with galvanized pressed steel floor

Adjustable Under and Over Loading Chute

  • Utilises an internal floor that can move from the bottom to the top deck height with a heavy-duty hand winch
  • Flexibility of dual deck loading, with the economy of single walkway
  • Walkways on both decks are Australian Standards compliant
  • Cattle rise to top deck height over 10.0m giving good stock flow with all classes of cattle
  • Suitable for rear or side loading, bat wing doors for side loading and sliding gate at truck end for both decks

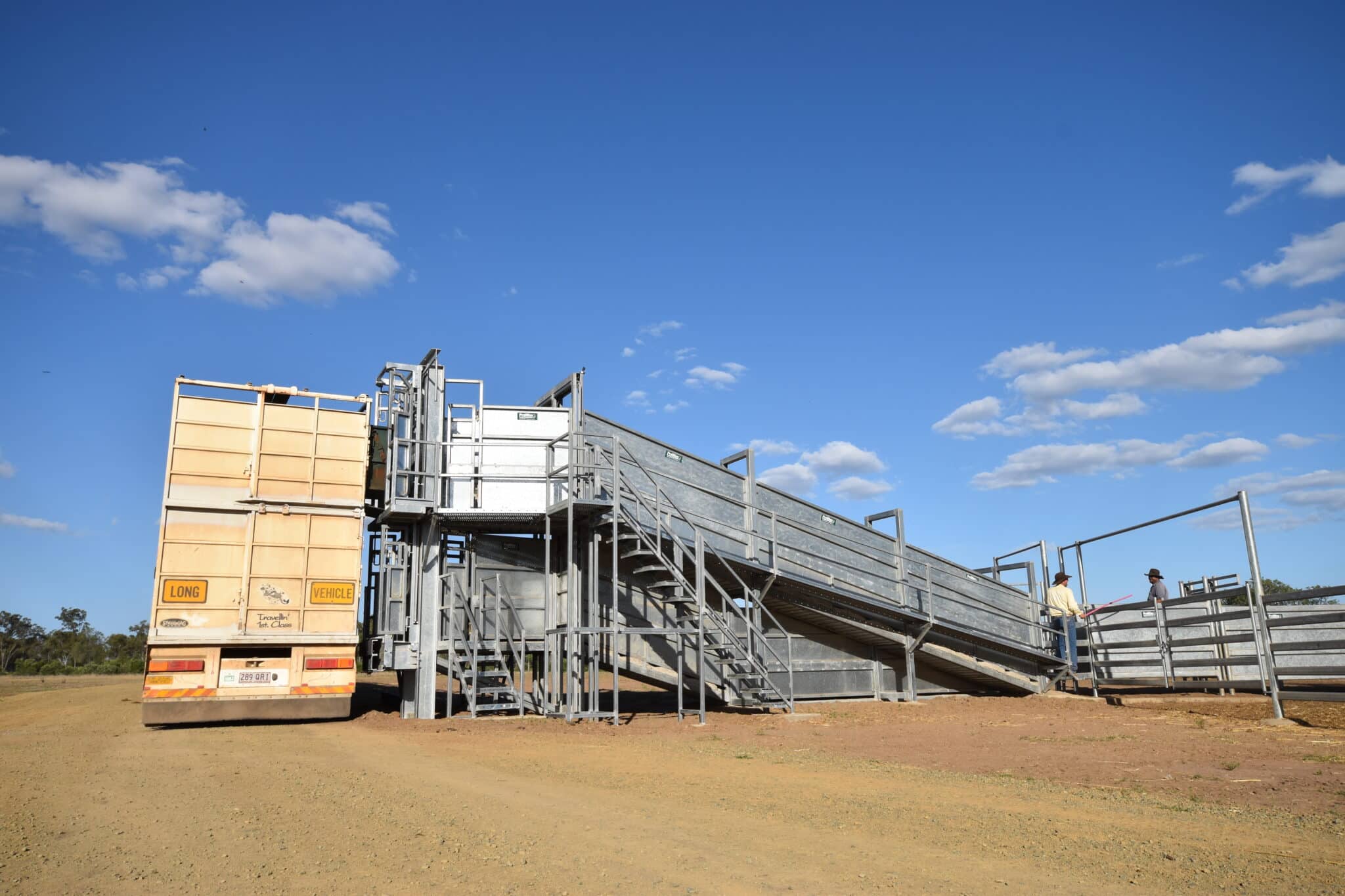

UNDER AND OVER REAR LOADING CHUTE

  • Heavy duty, galvanised frame with level extension for better cattle flow
  • Built for large scale operations and high throughput loading
  • Can be built to suit a 1m retaining wall or rise from ground level.
  • Non-slip stairs and safety walkway to both decks
  • Sliding gates at the truck end and a truck driver access door closes across the ramp to prevent operator injury

UNDER AND OVER SIDE LOADING CHUTE

  • Side loading compatible with a self-aligning swivel buffer, bat wing doors and a drop over truck bridge. They are adjustable in width to suit varied side load door openings
  • Heavy duty, galvanised frame with level extension for better cattle flow
  • Built for large scale operations and high throughput loading
  • Non-slip stairs and safety walkway to both decks
  • Sliding gates at the truck end and a truck driver access door closes across the ramp to prevent operator injury

8.0M ADJUSTABLE CATTLE LOADING CHUTE

  • Designed in conjunction with major transport companies to maximize stock flow and operator safety
  • Electric hoist to lift safely and efficiently between decks
  • Engineer certified heavy duty construction
  • Walkway and stairs with access gate at truck end
  • Fully sheeted 1.7m sides with viewing slot
  • Pressed checker plate hot dipped flooring
  • Non slip expanded mesh walkway (600mm wide) with hand rail, mid rail and toe board built to Australian Standards
