TEMPERATE BREED CATTLE CORRAL FEATURES

ProWay products are proudly designed and manufactured in
Australia and the USA, and installed all over the world.

PROWAY CATTLE CORRAL FEATURES FOR TEMPERATE (European) BREED CATTLE

Full Story: Cattle Yards LarnOO, Ghin Ghin, Victoria

“On the profitability side we’re a labor unit less than we needed in the old yards. What would have taken a day now takes us 2.5 hours.”

Jarrod McKay, ‘LarnOO’

A WIDE RANGE OF FEATURES

ProWay have a range of features that are catered to Bos Taurus and European Breed Cattle in temperate climates. Our custom design service provides ProWay customers with unique solutions best suited to your operation, meaning no two facilities are ever the same.

Refined over time our cattle corrals and facilities improve safety, animal welfare, stock flow and profitability with quality materials that are built to last.
We pride ourselves on the continual innovation of livestock handling technology.

LOOKING FOR TROPICAL CLIMATE FEATURES? CLICK HERE.

GROUND ENGAGING
POSTS AND PANELS

Find out more

Cattle Tub FORCE

Find out more

MANWAYS

Find out more

SORTING POUND

Find out more

UNDERCOVER WORK AREAS

Find out more

ELEVATED WALKWAYS

Find out more

Rail Options

115 CATTLE RAIL

Find out more

97 CATTLE RAIL

Find out more

50NB PIPE RAIL

Find out more

40NB PIPE RAIL

Find out more

32NB PIPE RAIL

Find out more

COOLER FENCE (CABLE BACKYARDS)

Find out more

GATE OPTIONS

STANDARD
CHAIN AND CATCH

Find out more

OVERHEAD BRACING

Find out more

LEVER HAZ CATCH

Find out more

POPLAR SLAM CATCH

Find out more

RACE OPTIONS

H-ALLEY ¾ SHEETED INSIDE, FULLY OUTSIDE

Find out more

V-ALLEY ¾ SHEETED INSIDE, FULLY OUTSIDE

Find out more

ADJUSTABLE SIDED ALLEY

Find out more

OVERHANGING RAIL

Find out more

SLIDING GATES

Find out more

3 OR 5 WAY MANUAL SORTING ALLEY

Find out more

CATTLE WEIGHBOX

Find out more

FULLY SHEETED CALF ALLEY

Find out more

LOOKING FOR MORE INFORMATION?

Talk to us and discover why ProWay Livestock Equipment is the choice of livestock professionals

Enquire Now

REQUEST A DESIGN CONSULTATION OR FURTHER INFORMATION

REQUEST A DESIGN CONSULTATION OR FURTHER INFORMATION

Instagram Facebook Twitter Youtube

GROUND ENGAGING POSTS AND PANELS

  • All permanent ProWay cattle corral posts are concreted in the ground for added strength
  • Every panel is made specifically for the individual job. Panels are built to suit the design rather than designed to suit the panels
  • All posts are hot dipped galvanized which is superior to electroplated pipe
  • For temperate breeds standard post size is 80NB medium wall (4mm) OD=88.9mm.
  • 100NB post upgrade is available for extra strength and longevity

CATTLE TUB

  • Manual or remote options available
  • Gate follows cattle around rolled panels reducing area encouraging cattle to enter the alley
  • Padded brake drags around rolled panels and locks in position
  • Braced overhead for strength and durability
  • Sheeted panels aid stock movement and operator safety
  • Separates the handler and stock in the forcing pen
  • Centre post is heavy duty galvanized 6″ capped pipe.
View Product

MANWAYS

  • Spring loaded 2 ft wide personnel gates
  • Provide quick safe access around yards
  • Implemented in key areas within the corral design to maximize efficiency, particularly the force and working areas
View Product

SORTING POUND

  • Sorting pounds allow for sorting cattle and calves in up to seven directions
  • Raised Crows Nest platforms give control from one raised position
  • Gates have a chain and spring catch to lock them in place when not in use
  • Gates are also braced overhead for extra strength
View Product

UNDERCOVER WORK AREAS

  • Provides weather protection to operators, stock and yards, increasing longevity of the corrals
  • Undercover work areas increase operational efficiency, allowing for all-weather work
  • Heavy duty steel construction with color bond or zinc roof option
  • ProWay can organize roof erection during the construction of corrals, or as a standalone structure
  • Sheds can be designed around yards, alternatively yards can be designed around an existing shed to maximize coverage and utilize columns.

ELEVATED WALKWAYS

  • Elevate operators to a safe, comfortable working height above stock
  • By following the walkway around the high throughput corrals and alley the operator is able to encourage stock flow from a more commanding position, out of harms way.
  • Non-slip walkway mesh
  • Cut and installed onsite to ensure neat and robust fit
  • Footings concreted in ground for strength
View Product

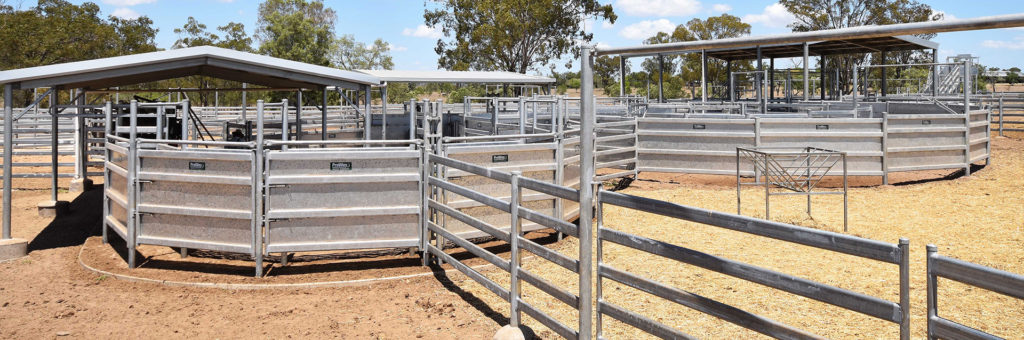

115 Cattle Rail

  • 115CR panels and gates stand at 1750mm and include 5 x 120mm rails and 100NB galvanised pipe posts
  • Panels are generally made with a post at one end and a curved plate at the other which are welded on site
  • The 115 x 48mm rail is an excellent visual barrier, while the 2mm wall thickness and DuraGal® zinc coating provide the highest strength and longevity on the market (min. zinc coating 100g/m3)
  • 115CR is generally utilized on tropical/zebu breed cattle operations, however has been utilized in ProWay facilities such as commercial sale barns, cattle studs and intensive operations where the highest strength and greater visual barrier is important.
View Product

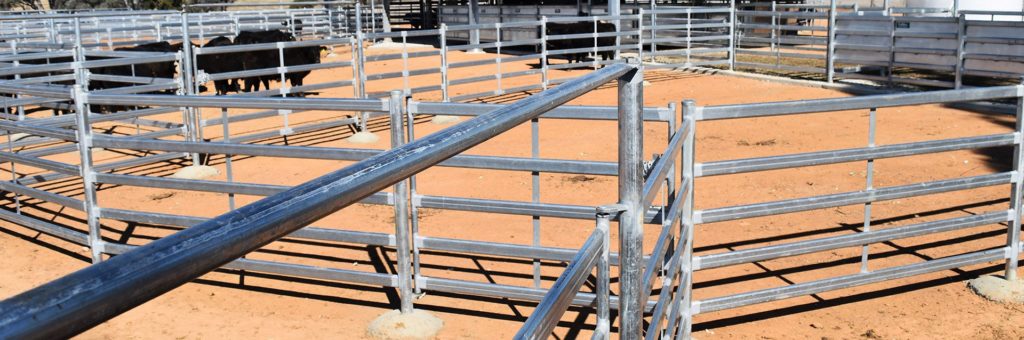

97 Cattle Rail

  • Cattle panels are made from five 97 x 42mm cattle rails and stand at 1.75m
  • ProWay’s cattle rail has been developed specifically for use in cattle corrals.
  • Rails are made from high tensile (grade 450) galvanized steel
  • Panels are generally made with a post at one end and a plate at the other which are welded on site
  • All panels are made to order for each individual corral design
  • All ends of the rail are notched for the neatest and strongest join to round posts
View Product

50NB Pipe Rail

These rails are an extra heavy duty galvanised oval extrusion, 53mm x 35mm

  • The oval profile of tube presents a flat vertical surface, giving excellent visibility with no sharp edges
  • Standard panels have 6 rails and are set at 1050mm high
  • Large gaps between top rails to minimise leg injury to sheep or dogs
  • Posts are fully galvanised 50NB pipe and where swinging gates are longer than 2.5m, 80NB posts are used for strength
View Product

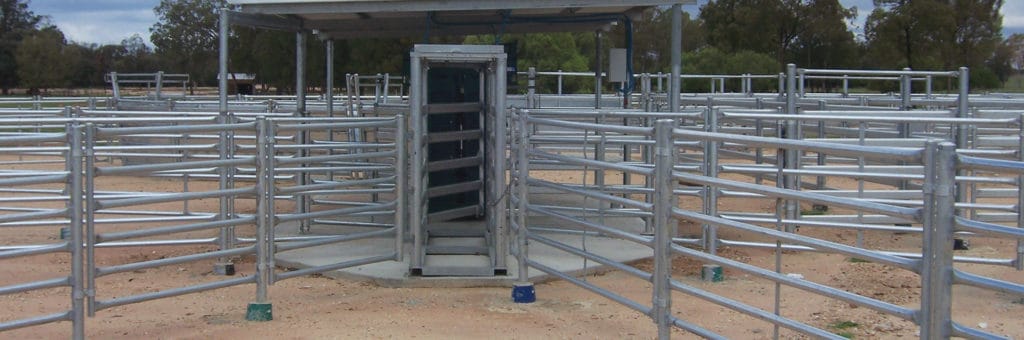

40NB Pipe Rail

  • The 40NB pipe rail range is available in a 6 rail configuration, 40NB (48.3 OD) galvanised pipe rails
  • Rails are crimped and welded to fully galvanised 80NB (88.9mm OD) posts
  • 100NB post upgrade is available for extra strength
  • Panels and gates are braced for strength when over 2.5m

32NB Pipe Rail

  • The 32NB pipe rail range is a lighter alternative to the cattle rail made from six 32NB (42.4mm OD) rails and stands at 1.75m
  • It is an economical alternative for backyards and holding yards
  • Rails are crimped and welded to fully galvanised 80NB (88.9mm OD) posts
  • Panels and gates are braced for strength when over 2.5m

Cooler Fence (Cable Backyards)

  • ProWay can supply two different cable options which are suitable for backyard and large holding pens at a reduced cost to the standard panel range.
  • Posts come pre-drilled and are fitted with cable plugs for longevity
  • Strainer assemblies are supplied
  • Post spacings are generally 2.5m with the the option of 2 x 50NB rails, six cables OR 1 x 50NB rail, seven cables.
View Product

Overhead Bracing

  • Gates can be upgraded to include overhead bracing
  • Single gates are braced with a 1 ½” pipe.
  • Double gates span over 10 ft are braced with 2” pipe.
  • Gates are braced at 7 ft (from the ground) as standard or up to 11 ft for throughways which require high clearance (i.e. horseback/machinery).
View Product

Lever Haz Catch

  • Developed and patented by ProWay
  • For animal safety, the Catch is fully contained inside the gate, not welded on the side
  • This prevents bruising to stock and limits damage to the Catch itself
  • The Catch can be locked open in one movement, so that no part of the bolt is exposed
  • Lever Haz Catches are particularly useful in situations where Catch access is limited
  • Generally, these Catches are installed on the outside of sheeted gates, or where gates need to be operated from a walkway
View Product

POPLAR SLAM CATCH

  • Poplar slam catches are another option for our standard gate range and are fitted to one side of the rail
  • Due to the lever handle, gates fitted with poplar catches are simple and quick to open and can be thrown shut
View Product

H- Alley ¾ SHEETED INSIDE, FULLY OUTSIDE

  • The H-Alley has full sheeting on the outside of the alley preventing distractions effecting stock flow
  • The inner arc of the alley is sheeted ¾ of the outside height to allow visibility and access to stock
  • Alleys are available at any length and are designed with suitable radial arcs to promote stock flow
  • Strength is given by the combination of a heavy duty galvanized frame and underground concreted bracing
  • ProWay can also build non-sheeted H-Alleys using any of our standard rail options
View Product

V-Alley ¾ SHEETED INSIDE, FULLY OUTSIDE

  • The V-Alley includes a fully sheeted outer arc which prevents legs and heads getting out
  • These sections are also made as safety release gates. They can be quickly opened to free overturned stock with two bolt catches (both high and low) so gate sections have no flex
  • The inner arc of the alley is sheeted ¾ of the outside height to allow visibility and access to stock
  • The ‘V’ profile also minimizes the chance of small stock turning around in the alley
  • The curved formation gives better draw up the alley, with stock circling past the operator
View Product

ADJUSTABLE SIDED ALLEY

  • The lever operated system allows for quick adjustment between widths of 33” and 23” at increments of 2”.
  • The adjustable alley gives flexibility as they’re suitable for multiple breed, size and age operations
  • It also stops smaller cattle turning around
  • It can be implemented to suit both curved and straight alley options
  • Eliminates the necessity of a calf alley
  • Optional overhanging rail allows unrestricted access to cattle
  • Can be adapted to pneumatic or sliding alley gates
View Product

OVERHANGING RAIL

  • ProWay have developed an overhanging bracing system that allows fluid movement for the operator while treating cattle, without jeopardizing strength and top rail height
  • Without the overhanging rail there are points in the alley that can be hard to access due to post obstruction
  • The overhanging rail creates a continuous gap that allows access to cattle at any point within the alley
View Product

Sliding Gates

  • Two styles of sliding gates are available
  • The conventional pull out sliding gate has no overhanging track on the operators side. The gates are reversible and can be used from either side
  • The alternative style is designed for use with walkways. The gate opens away from the operator. They’re operated by a lever type handle which drops down out of the way
View Product

3 or 5 Way Manual SORTING ALLEY

  • The cattle 3 or 5-way Manual Sorting Alley provides quick and safe sorting system in front of a squeeze chute
  • It is designed with access gates and slam catches for quick and safe access to animals
  • 4 ½” Cattle Rail available for strength
  • Sliding gate can be used as a baulk gate
  • Rubber stoppers for quieter operation
  • Hot dipped channel base for longevity
View Product

Cattle Weighbox

  • ProWay’s Cattle Weigh-box is fabricated with a galvanized steel frame/floor and designed to suit all cattle sizes
  • The offside is made from timber for EID compatibility
  • The nearside is sheeted with galvabond sheeting and adjusts to suit different sized cattle
  • Added features include:
    • Hanging weigh bars that sit above the box on ‘U’ hoops
    • A front sliding door – or one made for rear operation
    • An adjustable side to stop animals turning around
View Product

Fully Sheeted Calf ALLEY

  • The ProWay calf alley is 3.5 ft high to stop bigger calves jumping out
  • It has slam shut gates at both ends for quick closing and can include a sliding gate positioned to hold one calf before the cradle
  • The alley length is determined by the size of the operation and specific requirements
  • ProWay can also supply a baulk bar to stop calves jumping out or over each other
View Product

Standard Chain and Catch

  • Chains and the ProWay HAZ catch come standard on all 4 ½ Oval and 2” Pipe rail gates (except double gates which are chain only)
  • For overnight holding and extra security, the chains can be dropped into the inverted “T” slot which is welded to the rail
  • The catch has been developed and patented by ProWay as an effective multi-purpose, heavy duty gate catch
  • For safety, they’re fully contained within the line of the gate and not welded onto the side of the gate
  • The catch can be locked open in one movement, so that no part of the bolt is exposed. This reduces potential for cattle injury
  • The ring pull bolt system is simple to operate from either side of the gate and closes into a fitted pocket on the opposing post
View Product
