TROPICAL BREED CATTLE CORRAL FEATURES

ProWay products are proudly designed and manufactured in
Australia and the USA, and installed all over the world.

PROWAY CATTLE corral FEATURES FOR TROPICAL (zebu) BREED CATTLE

Full Story: Cattle Yards Mt Flora Station, Nebo, Queensland

“It’s just made everything safer and a lot quicker. They’re an asset that are going to last you 40 – 50 years. You couldn’t have asked for a better set of yards.”

Griff Symonds, ‘Mt Flora Station’

A WIDE RANGE OF FEATURES

ProWay have a range of features that are catered to Bos Indicus, Zebu and larger tick tolerant cross bred cattle suited to tropical climates. Our custom design service provides ProWay clients with unique solutions best suited to your operation, meaning no two facilities are ever the same.

Refined over time our cattle corrals and facilities improve safety, animal welfare, stock flow and profitability with quality materials that are built to last.
We pride ourselves on the continual innovation of livestock handling technology.

LOOKING FOR TEMPERATE CLIMATE FEATURES? CLICK HERE.

CATTLE TUB

Find out more

SORTING POUND

Find out more

CATTLE WEIGHBOX

Find out more

ELEVATED WALKWAYS

Find out more

MANWAYS AND ACCESS GATES

Find out more

UNDERCOVER WORK AREAS

Find out more

Rail Options

4 ½” Oval CATTLE RAIL

Find out more

50NB PIPE RAIL

Find out more

SHEETED PANELS AND GATES

Find out more

COOLER FENCE (CABLE BACKYARDS)

Find out more

GATE OPTIONS

STANDARD CHAIN AND CATCH

Find out more

OVERHEAD BRACING

Find out more

LEVER HAZ CATCH

Find out more

POPLAR SLAM CATCH

Find out more

Alley OPTIONS

H-ALLEY 115CR INSIDE, SHEETED OUTSIDE

Find out more

H-ALLEY ½ SHEETED INSIDE, FULLY SHEETED OUTSIDE

Find out more

Alley RELEASE GATES

Find out more

ADJUSTABLE SIDED Alley

Find out more

SLIDING GATES

Find out more

3 OR 5 WAY MANUAL SORTING ALLEY

Find out more

CATTLE WEIGHBOX

Find out more

FULLY SHEETED CALF ALLEY

Find out more

LOOKING FOR MORE INFORMATION?

Talk to us and discover why ProWay Livestock Equipment is the choice of livestock professionals

Enquire Now

REQUEST A DESIGN CONSULTATION OR FURTHER INFORMATION

REQUEST A DESIGN CONSULTATION OR FURTHER INFORMATION

Instagram Facebook Twitter Youtube

Tub Force

  • The Tub Force has a gate designed to follow the cattle around, reducing the pen while encouraging stock flow
  • The padded brake moves around the rolled panels locking into position, this stops cattle from backing up and keeps the operator out of harm’s way
  • Braced overhead for strength and durability
  • The center post is heavy duty galvanized 150NB pipe (165mm OD).
  • Sheeted panels improve stock flow and operator safety and remove the need for handlers to be in the force yard with cattle
View Product

SORTING POUND

  • The Sorting Pound is often used as an entry to the working area allowing access to the force and up to seven direction drafting
  • Each gate includes a chain and catch and are braced overhead for extra strength
  • ProWay can also design a crow’s nest or raised platform for overhead drafting. These structures have the ability to open and draft from one raised position and are equipped with non-slip stairs and hand rails
View Product

CATTLE WEIGHBOX

  • ProWay’s Cattle Weighbox is designed to suit all cattle sizes
  • The frame is made from heavy duty galvanised steel with the sheeted nearside adjustable to suit different sized cattle
  • The offside is made from timber for EID compatibility
  • Additional features available:
  • Hanging weigh bars that sit above the box on ‘U’ hoops
  • A front sliding door – or one made for rear operation
  • A one side gate for sorting and/or safety release
View Product

ELEVATED WALKWAYS

  • ProWay Walkways allow the operator to be elevated to a safe, comfortable working height above stock
  • By following the walkway around the force yards and race, the operator is able to encourage stock flow from a more commanding position
  • Non-slip walkway mesh for added safety
  • Cut and welded in place onsite to ensure a neat finish
  • Concreted in ground for strength
View Product

MANWAYS AND ACCESS GATES

  • Placed strategically around your design for quick access
  • Manways are available in all ProWay standard rail types
  • Vertical spring catch and braced overhead for strength
  • 600mm wide to allow operator access and keep cattle out
  • Implemented in key areas within the corral design for access, particularly the force and working areas
View Product

UNDERCOVER WORK AREAS

  • Our Undercover Work Areas provide protection to operators, stock and corrals, increasing longevity of the facility and equipment
  • Undercover Work Areas increase operational efficiency, allowing for all-weather work
  • Made from heavy duty steel construction with colourbond or zinc roof option
  • Sheds can be designed around yards, alternatively yards can be designed around an existing shed to maximize coverage and utilize columns and space

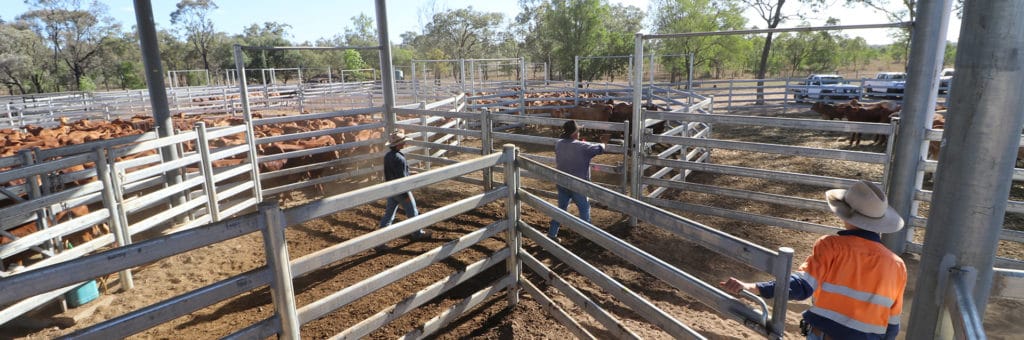

115 CATTLE RAIL

  • 115CR is the standard rail type utilized on tropical/zebu cattle operations where strength and height is paramount
  • 115CR panels and gates stand at 1750mm and include 5 x 115mm rails and 100NB galvanized pipe posts
  • Panels are generally made with a post at one end and an endplate at the other for a seemless finish
  • The 115 x 48mm rail is an excellent visual barrier, while the 2mm wall thickness and DuraGal® zinc coating provide the highest strength and longevity on the market (min. zinc coating 100g/m3)

View Product

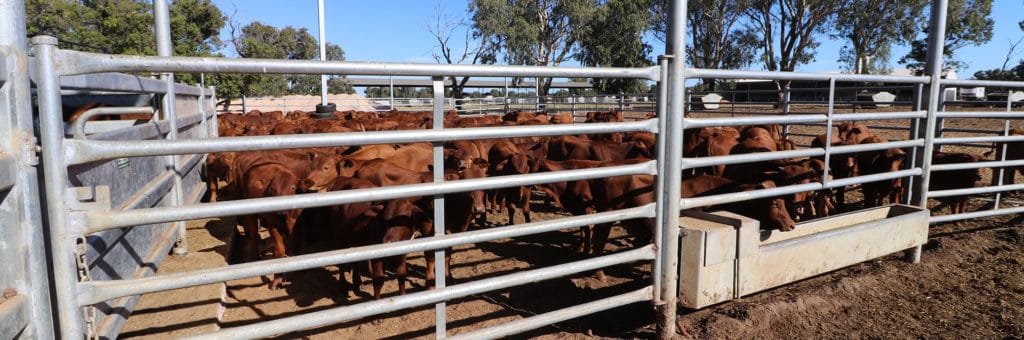

50NB PIPE RAIL

  • The 50NB pipe rail range is available in a 5 or 6 rail configuration and is built with 50NB (60.3mm OD) galvanised pipe rails
  • Rails are crimped and welded to fully galvanised 80NB (88.9mm OD) posts
  • 100NB post upgrade is available for extra strength and longevity
  • Panels and gates are braced for strength when over 2.5m
  • All panels are made to order for each individual corral design
  • Panels are built to fit the design, rather than design-fit fixed length panels
View Product

SHEETED PANELS AND GATES

  • ProWay stockyards utilise Sheeted Panels in key areas of the design
  • Sheeted Panels and Gates in strategic locations improve stock flow by removing distractions
  • Sheeted Panels and Gates are available in all oval profile rail types and are constructed with high grade galvanised sheet
  • ProWay use a 1.5mm sheet on 97CR, and 2mm across the heavy duty 115CR range
  • Sheeting is welded and painted, with silicon applied at sheet and rail connections to reduce noise
View Product

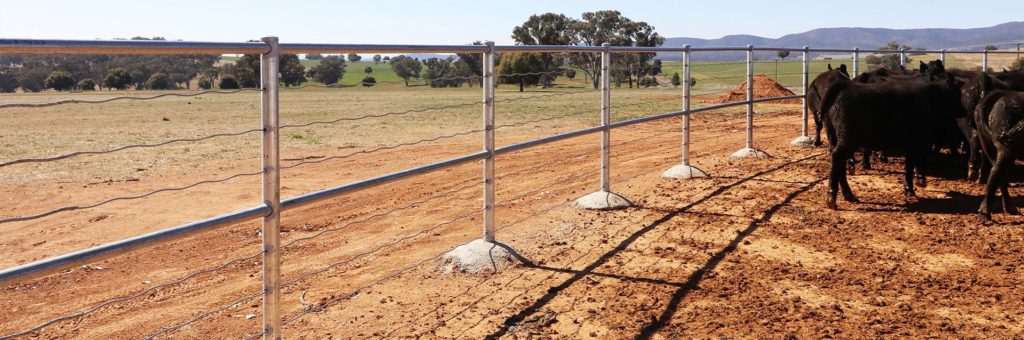

COOLER FENCE (CABLE BACKYARDS)

  • ProWay can supply two different cable options which are suitable for backyard and large holding pens at a reduced cost to the standard panel range
  • Posts come pre-drilled and are fitted with cable plugs for longevity
  • Strainer assemblies are supplied
  • Post spacings are generally 2.5m with the option of 2 x 50NB rails, six cables OR 1 x 50NB rails, seven cable
View Product

STANDARD CHAIN AND CATCH

  • Chains and the ProWay HAZ Catch come standard on all 97CR, 115CR and 50NB gates (except double gates which are chain only)
  • The Catch has been developed and patented by ProWay as an effective multi-purpose, heavy duty gate catch
  • For overnight holding and extra security, the chains can be dropped into the inverted “T” slot which is welded to the rail
  • For safety, it is fully contained within the line of the gate and not welded onto the side of the gate
  • The catch can be locked open in one movement, so that no part of the bolt is exposed. This eliminates the chance of injury to cattle when sorting.
  • The ring pull bolt system is simple to operate from either side of the gate and closes into a fitted pocket on the opposing post
View Product

OVERHEAD BRACING

  • Gates can be upgraded to include overhead bracing where applicable
  • Single gates are braced with a 40NB pipe
  • Double gates span over 3.1m are braced with 50NB pipe
  • Gates are braced at 2.2m (from the ground) as standard or up to 3.3m for throughways which require high clearance (i.e. horseback/machinery)
View Product

LEVER HAZ CATCH

  • Developed and patented by ProWay, the Lever Haz Catch is fully contained inside the gate, not welded on the side
  • Designed to reduce bruising to stock and limits damage to the catch itself
  • The catch can be locked open in one movement, so that no part of the bolt is exposed
  • Lever Haz Catches are particularly useful in situations where Catch access is limited.
  • Catches are installed on the outside of sheeted gates, or where gates need to be operated from a walkway
View Product

POPLAR SLAM CATCH

  • Poplar Slam Catches are another option for our standard gate range and are fitted to one side of the rail
  • Due to the lever handle, gates fitted with Poplar Catches are simple and quick to open and can be thrown shut
View Product

H-ALLEY 115CR Inside, Sheeted Outside

  • The H-Alley is available with full sheeting on the outside of the alley preventing distractions affecting stock flow
  • Five 115mm rails on the inside of the alley allow visibility and access to stock while allowing the operator into the flight zone of the cattle to move them toward the squeeze chute
  • H-Alley’s are available at any length and are designed with suitable radial arcs to promote stock flow
  • Strength and longevity is maintained with a combination of heavy duty galvanized construction and top/bottom bracing
  • Optional release gates on outside panels
View Product

H-ALLEY ½ SHEETED INSIDE, FULLY SHEETED OUTSIDE

  • An alternative to all open rails on the inside this option ensures legs don’t go through or get caught in the race
  • Five 115CR rails with the bottom half sheeted offers visibility and safety benefits
  • Suits an alley with a full walkway around the inside
  • Alleys are available at any length and are designed with suitable radial arcs to promote stock flow
  • Strength and longevity is maintained with a combination of heavy duty galvanised construction and top/bottom bracing
  • Optional release gates on outside panels
View Product

ALLEY Release Gates

  • Release Gates are available as an upgrade for H-Races which allows them to be opened from the outside of the alley
  • Outside arc panels are replaced with hinged gates and two bolt catches to lock them in place during use
  • Useful for releasing cattle that have turned around or become stuck in the alley
  • Gates are braced overhead for strength and swing out using ProWay’s cone and pin hinge system
  • Can also be utilized when cleaning out the alley
View Product

Adjustable Sided ALLEY

  • The lever operated system allows for quick adjustment between widths of 850mm and 600mm at increments of 50mm
  • The Race gives flexibility to your enterprise as there is suitability for multiple breed, size and age operations
  • It also stops smaller cattle turning around which can occur in a standard fixed width alley
  • Can be implemented to suit both curved and straight alley options
  • Eliminates the necessity of a Calf Alley
  • Optional overhanging rail allows unrestricted access to cattle
  • Can be adapted to Pneumatic or Sliding Alley Gates
View Product

Sliding Gates

  • Two styles of Sliding Gates are available
  • The conventional Pull Out Sliding Gate has no overhanging track on the operators side. The Gates are reversible and can be used from either side.
  • The alternative style is designed for use with walkways. The Gate opens away from the operator, so that the walkway is not blocked by the open Gate. It is operated by a lever type handle which drops down out of the road
View Product

3 or 5 Way Manual SORTING ALLEY

  • The cattle 3 or 5-way manual sorting alley provides quick and safe drafting in front of a squeeze chute
  • It is designed with access gates and slam catches for quick and safe access to animals
  • 97 or 115 Cattle Rail available for strength
  • Sliding Gate can be used as a baulk gate.
  • Rubber stoppers for quieter operation
  • Hot dipped channel base for longevity
View Product

CATTLE WEIGHBOX

  • ProWay’s Cattle Weighbox is all galvanised steelwork and designed to suit all cattle sizes
  • The offside is made from timber for EID compatibility
  • The nearside is sheeted with galvabond sheeting and adjusts to suit different sized cattle
  • Added features include:
    • Hanging weigh bars that sit above the box on ‘U’ hoops
    • A front sliding door – or one made for rear operation
    • A one side gate for sorting and/or safety release
    • An adjustable side to stop animals turning around
View Product

Fully Sheeted Calf ALLEY

  • The ProWay Calf Alley is 1.1m high to stop bigger calves jumping out
  • It has slam shut gates at both ends for quick closing and can include a sliding gate positioned to hold one calf before a calf squeeze.
  • The alley length is determined by the size of the operation, panels can be unsheeted if preferred
  • A baulk bar can be implemented to stop calves jumping out or over each other
  • An overhanging rail can also be included
View Product
